Ridley E-ASTR Rival XPLR Gravel E-Bike

Ridley

8.199,00 € - 0,00% - 0,00 € 8.199,00 €

**Check Availability.**

The E-ASTR is the electric version of our ASTR RS, the benchmark in gravel performance. Based on the same frame and sporty geometry, it offers the same responsive ride and handling feel—with subtle thrust thanks to the compact and quiet TQ HPR40 motor.

With a wheelbase of up to 52 mm and geometry optimized for control, agility, and speed, the E-ASTR maintains its racing DNA. The assistance feels completely natural, disengaging smoothly above 25 km/h (15.5 mph), and providing just the right amount of support. The integrated 290 Wh battery and optional 160 Wh range extender ensure good range without compromising weight or aesthetics.

The E-ASTR guarantees a sporty and natural riding experience—but with that extra touch, without sacrificing smoothness or control.

*Product assembly may differ from the photo. Be sure to check the specifications. The brand reserves the right to modify features, technical specifications, or components without prior notice, in accordance with its continuous improvement policies.*

SPECIFICATIONS

Frame	E-ASTR, HM carbon, designed for TQ mid motor, TA12x142, 52mm tire clearance
Fork	E-Astr 7E9/EAS02As
Groupo	Sram Rival XPLR 1x13
Cranks	Praxis Type-5 // 42T // 172mm
Cassette	Sram Rival XPLR 10-46 13sp
Drive Unit	TQ drive unit, light assist
Battery	TQ Lithium-Ion 290Wh
Rear Derailleur	SRAM RIVAL XPLR
Handlebar/Stem	Forza Cirrus Pro Integrated Flared 16° // Drop 120mm // Reach 70mm
Seatpost	Forza Aero // 6mm Offset // 400mm
Saddle	Selle Italia Novus Boost Superflow // Manganese Rails // Black
Wheels	DT Swiss G1800 Spline // TA 12x100mm (F)- 142mm (R) // Tubeless Ready// 25mm Deep // 24mmm Internal Width
Tires	Vittoria Terreno Dry TLR // 700x47c // Folding-TLR // Tan Wall
Max Tire Clearance 700c	50 mm

Brand: Ridley
Reference: SBIEASRID0

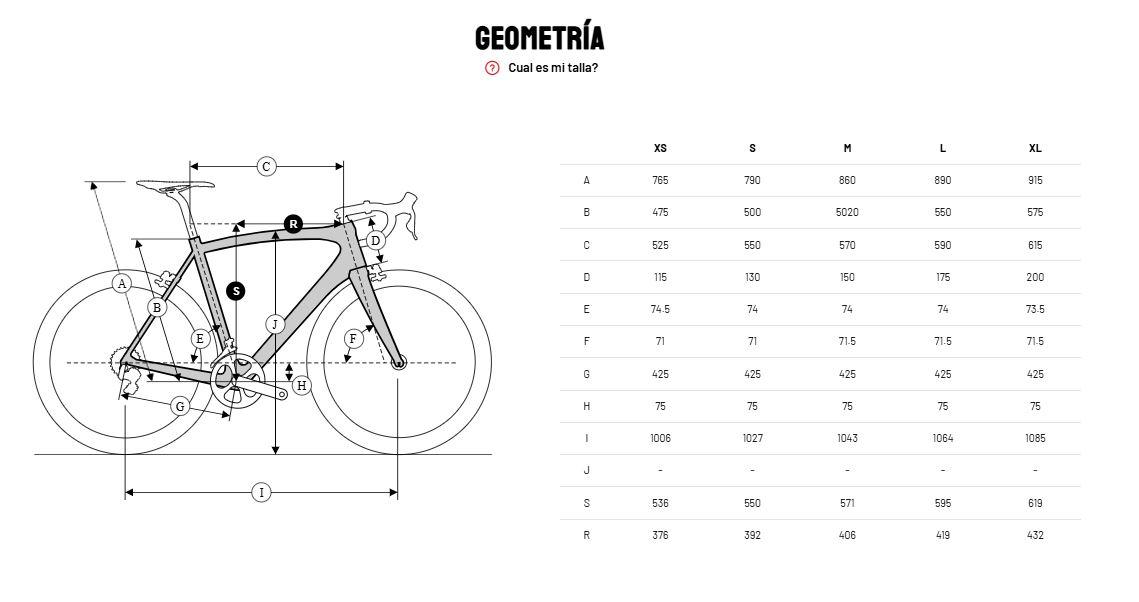

Geometría
Availability: Pre-order

Ridley

Option selection:

Talla	XS S M L XL

Quantity:

Natural Ride Feel

The E-ASTR delivers a riding experience so natural you barely notice the motor. The TQ HPR40 provides support exactly when needed and disengages smoothly above 25 km/h, without any jerks or extra resistance. This keeps the cycling feel 100% authentic — sporty, fluid, and fully controlled, with just that little extra power for every challenging moment.

290 Wh Battery Capacity

The integrated 290 Wh lithium-ion battery of the TQ HPR40 drive unit combines an exceptionally low weight of just 1,460 grams with the best weight-to-capacity ratio in its class. Advanced software precisely manages energy consumption, ensuring every ride – from steep climbs to long day trips – is as efficient as possible. Everything about this battery is designed for maximum performance and a natural riding feel, perfectly integrated into the bike’s design.

Tire clearance up to 52 millimetres

The Astr family features groundbreaking tire clearance: 52 millimeters with a 1x setup and 47 millimeters with a 2x setup. This is no coincidence, but the result of a carefully considered vision from our product developers. They anticipated the increasing technical demands of gravel racing and the growing desire among riders for more grip, stability, and versatility.

At a time when gravel bikes are continually pushing boundaries, the Astr family positions itself as a category-leading innovator. With these exceptional specifications, we underline our ambition not just to follow trends, but to inspire and define what gravel truly means.

TQ HPR40 Drive Unit

The E-ASTR is powered by the brand-new TQ HPR40 drive unit. With the highest torque-to-weight ratio in its class, it operates almost silently and offers a responsiveness that blurs the line between rider and motor. This piece of high-tech precision is currently the lightest and most compact system on the market. Weighing just 1.2 kg for the motor and 1.46 kg for the battery, the overall weight remains minimal. Visually too, the system is discreet: the motor is subtly hidden behind the chainrings, and the battery is elegantly integrated into the downtube.

Extend your ride with the Range Extender

The Range Extender is a compact and smart solution for those who want to get the most out of the TQ HPR40 drive unit. With the size of a standard 500 ml water bottle, this additional battery provides a practical extension of your range without compromising the design or weight of your bike. Thanks to intelligent charging logic and the ability to power the drive unit independently, it’s a powerful and versatile supplementary energy source for longer rides.

Performance Geometry

Modern performance geometry demands more stability due to increasingly rough terrain combined with higher speeds. A 71.5-degree headtube angle ensures you have faster handling. The Astr family features a steeper seat tube (74 degrees), improving climbing performance and power transfer.

The product developers kept the chainstays as short as possible to accommodate tyres up to 52 millimetres without losing the feeling of responsiveness when accelerating. In addition, the bottom bracket is a bit lower. This ensures you have more stability at high speed. Finally, the head height is lower, so you sit more aerodynamically on the bike. In summary, this boils down to a modern competitive geometry, tailor-made for the ambitious gravel racer.

Universal Derailleur Hanger (UDH)

The universal derailleur hanger (UDH) is the new standard in the cycling world. Not only is this derailleur hanger compatible with all modern shifting groups, it also protects against derailleur breakage and chain drops. In mountain biking, UDH has long been very common, and Ridley is bringing the technology to other segments as well.
